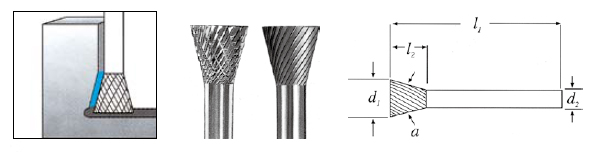

编号 | 刃径 | 刃长 | 柄径 | 总长 | α |
N0304M06 | 3 | 4 | 6 | 55 | 10° |
N0607M06 | 6 | 7 | 6 | 65 | 10° |
N0810M06 | 8 | 10 | 6 | 65 | 10° |
N1010M06 | 10 | 10 | 6 | 65 | 20° |
N1213M06 | 12 | 13 | 6 | 65 | 20° |
N1616M06 | 16 | 16 | 6 | 65 | 20° |
编号 | 刃径 | 刃长 | 柄径 | 总长 | α |
N0304M06 | 3 | 4 | 6 | 55 | 10° |
N0607M06 | 6 | 7 | 6 | 65 | 10° |
N0810M06 | 8 | 10 | 6 | 65 | 10° |
N1010M06 | 10 | 10 | 6 | 65 | 20° |
N1213M06 | 12 | 13 | 6 | 65 | 20° |
N1616M06 | 16 | 16 | 6 | 65 | 20° |
